Name: Altinkaya Hinged Enclosure 300x200x80mm - IP67 - Gray - ABS - EC-2030-8-A-G-0
SKU: 006249
Price: 19 EUR
Availability: OutOfStock

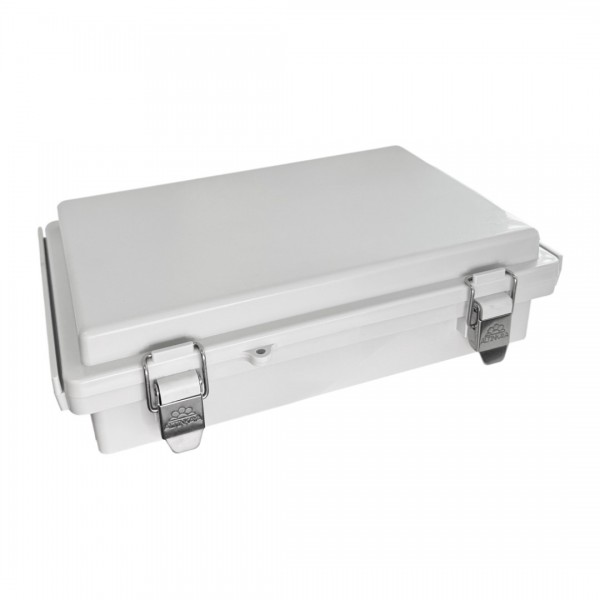

Altinkaya Hinged Enclosure 300x200x80mm - IP67 - Gray - ABS

2-4 Weeks

Altinkaya Hinged Enclosure 300x200x80mm - IP67 - Gray - ABS

Availability: 2-4 Weeks
SKU: 006249

Based on 0 review(s) - Write a review

€19.00

Ex Tax: €15.70

Qty

Add to Cart

Add to wishlist

Not in stock

A high quality universal enclosure to neatly build in your project. This variant has a separate gasket with which the contents can be well protected against water and dust.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Altinkaya Hinged Enclosure 300x200x80mm - IP67 - Gray - ABS

Average Rating:

This product has 0 review(s) in total.

Mechanical design (dimensions): 006249_EC-2030-8_drawing.pdf

3D model: 006249_EC-2030-8_3D.zip

Tags: Altinkaya Hinged Enclosure 300x200x80mm - IP67 - Gray - ABS , EC-2030-8-A-G-0 , Universal

Specifications

General
Brand	Altinkaya
Manufacturer model/SKU	EC-2030-8-A-G-0
Minimum operating temperature [°C]	-30
Maximum operating temperature [°C]	70
Features	Enclosure
General physical appearance
Main color	Gray/silver
Weight [g]	862
Dimension X [mm]	309 (see downloads tab)
Dimension Y [mm]	200 (see downloads tab)
Dimension Z [mm]	130 (see downloads tab)
Water and dust protection	IP67
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	4.3
Form factor	Enclosure universal
Enclosure
Lid/front-cover color	Gray
Material	ABS
Lid/front-cover assembly	Hinge
Gasket	Separate
Package contents

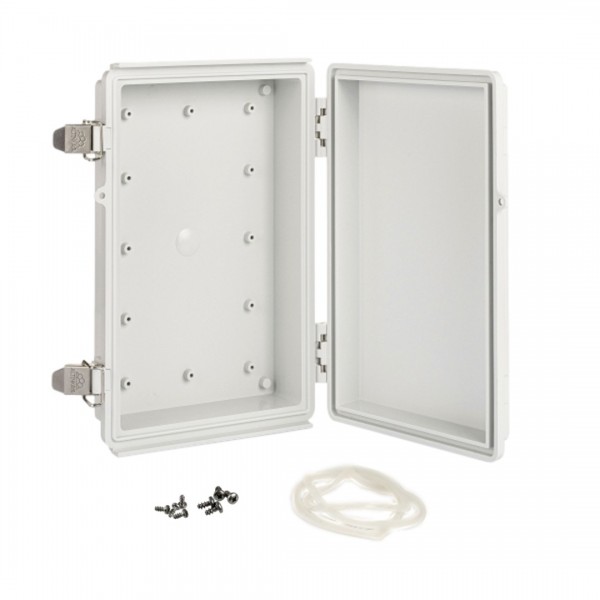

Package contents	1x Enclosure 1x Gasket 4x Mounting screw small 4x Mounting screw large
