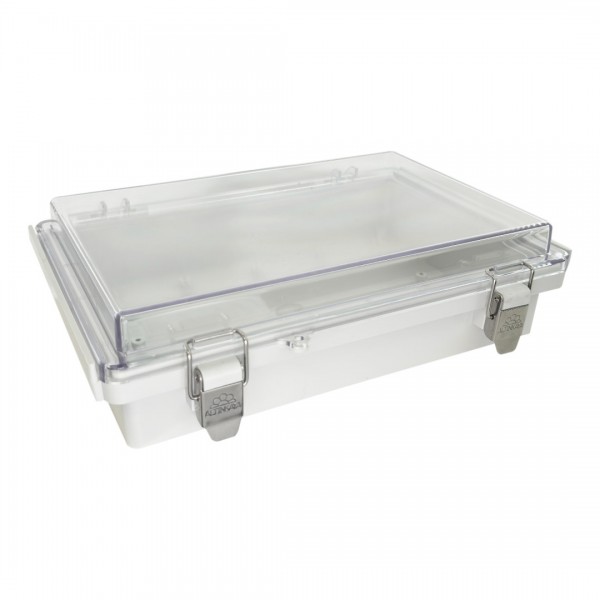

Altinkaya Hinged Enclosure 300x200x80mm - IP67 - Transparent - ABS

Altinkaya Hinged Enclosure 300x200x80mm - IP67 - Transparent - ABS
Altinkaya Hinged Enclosure 300x200x80mm - IP67 - Transparent - ABS
Altinkaya Hinged Enclosure 300x200x80mm - IP67 - Transparent - ABS
Altinkaya Hinged Enclosure 300x200x80mm - IP67 - Transparent - ABS
Altinkaya Hinged Enclosure 300x200x80mm - IP67 - Transparent - ABS
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006250
€21.50
Ex Tax: €17.77

A high quality universal enclosure to neatly build in your project. This variant has a see-through lid and a separate gasket with which the contents can be well protected against water and dust.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Altinkaya Hinged Enclosure 300x200x80mm - IP67 - Transparent - ABS

This product has 0 review(s) in total.

Mechanical design (dimensions): 006250_EC-2030-8_drawing.pdf

3D model: 006250_EC-2030-8_3D.zip

Specifications

General
Brand Altinkaya
Manufacturer model/SKU EC-2030-8-A-G-C
Minimum operating temperature [°C] -30
Maximum operating temperature [°C] 70
Features Enclosure
General physical appearance
Main color Gray/silver
Weight [g] 900
Dimension X [mm] 309
(see downloads tab)
Dimension Y [mm] 200
(see downloads tab)
Dimension Z [mm] 80
(see downloads tab)
Water and dust protection IP67
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 4.3
Form factor Enclosure universal
Enclosure
Lid/front-cover color Colorless/transparent
Material Polycarbonate (PC)
ABS
Lid/front-cover assembly Hinge
Gasket Separate

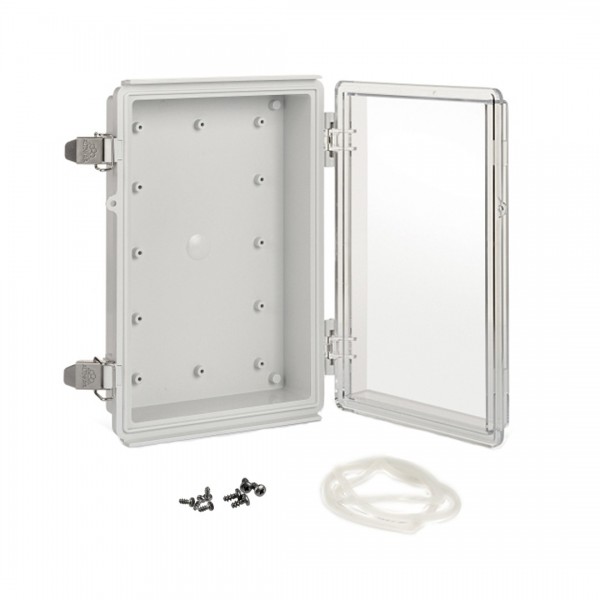

Package contents
Package contents 1x Enclosure
1x Gasket
4x Mounting screw small
4x Mounting screw large
