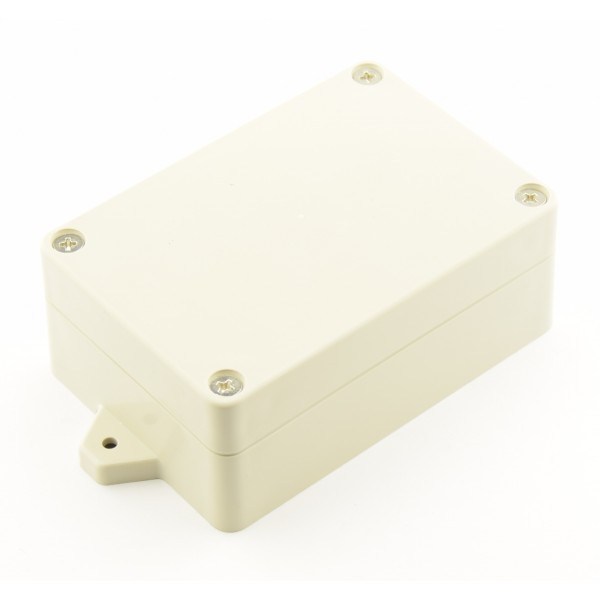

Enclosure 100x68x40mm

See images for the outer dimensions. Material is ABS plastic.

Inside dimensions: 93 x 61 x 31 mm (without legs on the inside), 93 x 61 x 25 mm (with legs on the inside)
Note: The inner dimensions are based on the dimensions in the middle. Inside, the corners slightly protrude (inwards), which may make the room smaller.

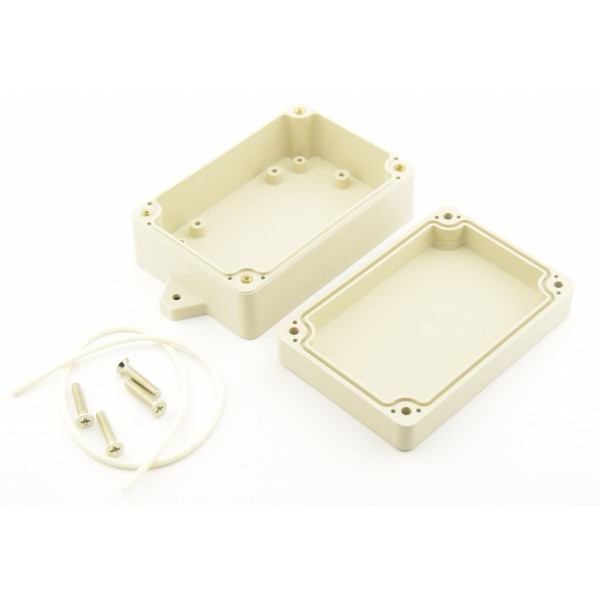

4 screws and a gasket are included. (these must be assembled yourself). The housing has screw holes on the outside of the (3 mm) that can be used for assembly.

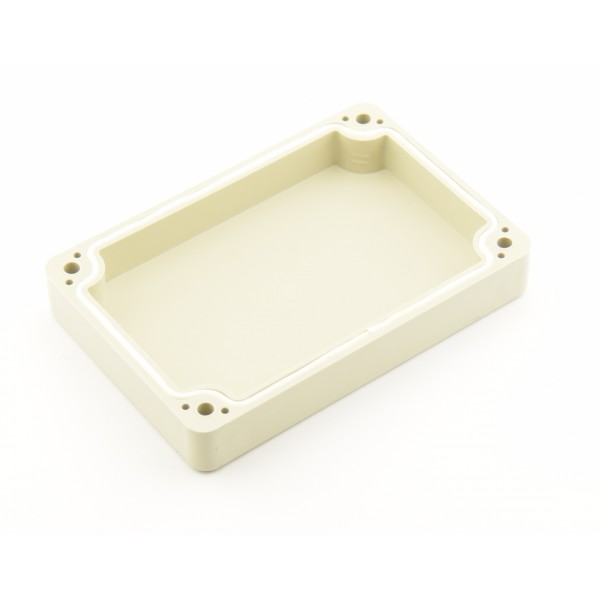

Tip: Push the gasket into the edge of the lid and at the end keep a small piece before you cut it. (about 2-3mm)
Then you can press the last piece a bit, which provides better protection against water/moisture.

Please note: we are not responsible for incorrect assembly of the gasket and/or screws, which can lead to water damage, for example.
