M5Stack ATOM HUB Proto Kit - for M5ATOM series

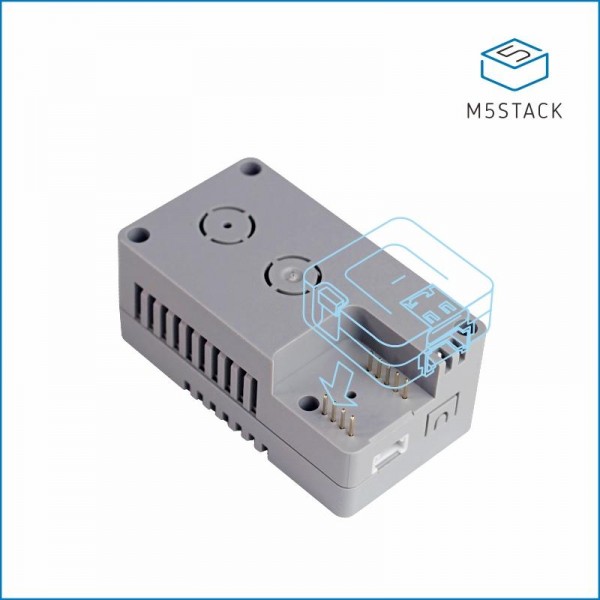

The M5Stack ATOMIC Proto Kit is a DIY proto kit designed for the M5ATOM series. The module can be connected directly via the 9 pins on an M5ATOM. The kit consists of a PCB with connection material and a housing with accessories.

Specifications:

• Compatible with M5ATOM
• Dimensions: 72 x 40 x 30mm (without terminals)

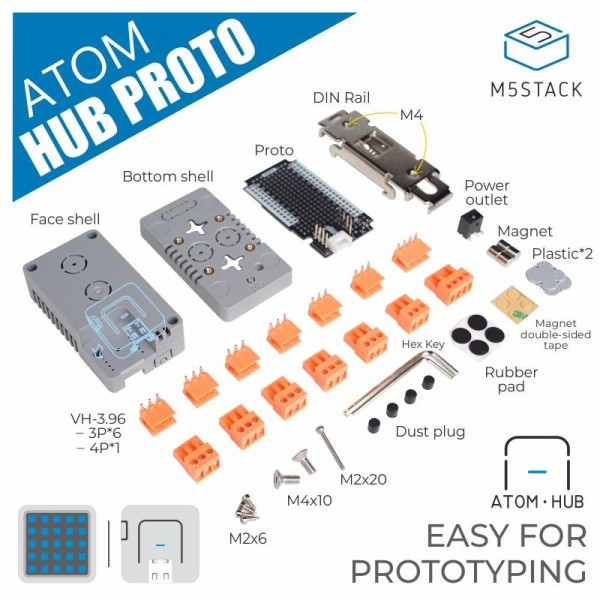

Package contents:

• 1x ATOM Hub case

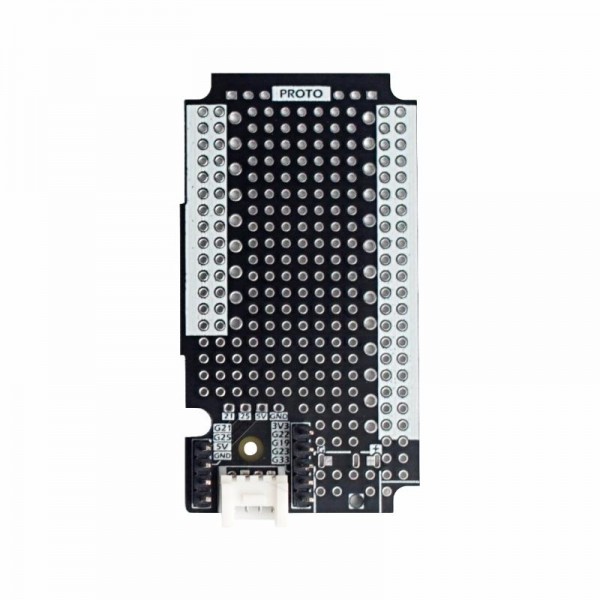

• 1x Proto Board (with Grove port)
• 1x 4p HT3.96 terminal + PCB connector
• 6x 3p HT3.96 terminal + PCB connector
• 1x DC jack circuit board connector

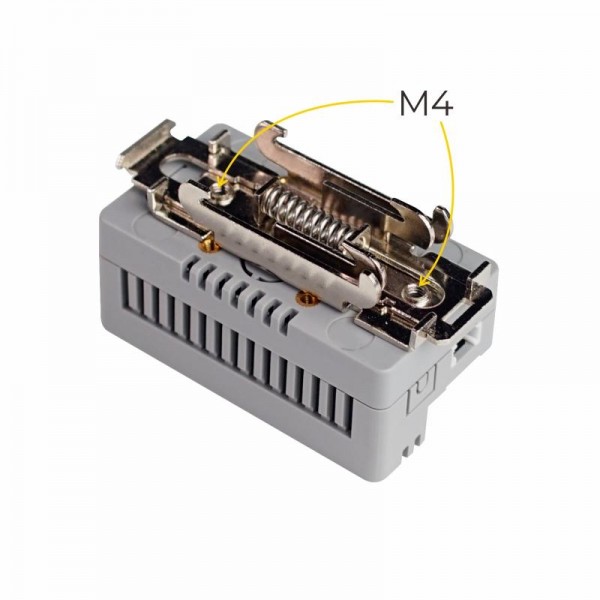

• 1x DIN rail mount
• 4x Dust plugs
• 4x Mounting magnets + double-sided tape
• 4x Rubber pads
• 2x Plastic caps
• 4x Allen screw M2x6mm
• 1x Allen screw M2x20mm
• 2x Allen screw M4x10mm
• 2x Allen key

For more information, see the following page: ATOM HUB Proto Kit

Note: M5ATOM is not included.
